Greenstar System Filter 22mm & 28mm overview

Over time, central heating system water accumulates harmful dirt and debris, such as rust and solder fragments shed by radiators and boilers, all of which can cause considerable problems.

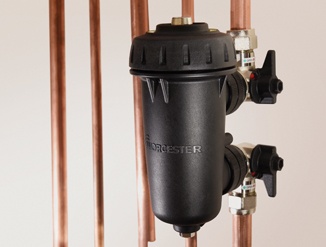

The Worcester Greenstar System Filter has been specifically designed to combat the damaging effects of system debris and pollutants by capturing contaminants before they reach your boiler.

* Independent research carried out by GASTEC at CRE

  Earn 5 points with these products on the Greenstar Reward Programme

Features & Benefits

Magnetic and non-magnetic filtration to collect a wide range of system debris
Can be installed both under and over the boiler or remotely
One-way valve for ease of adding system chemicals
Isolation valve indicators to visually assist when isolating the filter
Over tightening prevention feature
Detachable body for ease of service and powerflushing
Drainage point at the bottom for ease of access during servicing

Technical Details

Greenstar System Filter 22mm Greenstar System Filter 28mm
Part number 7 733 600 236 7 733 600 237
Dimensions (mm) height x width x depth 209 x 180 279 x 183
Effective volume of magnetic length 36,500 mm3 55,000 mm3
Canister size (with valves in closed position) 534ml 630ml
