Greenstar Danesmoor Regular overview

Our Greenstar Danesmoor Regular boiler is perfect for small, medium and large sized homes with a traditional open vent heating system that includes stored hot water.

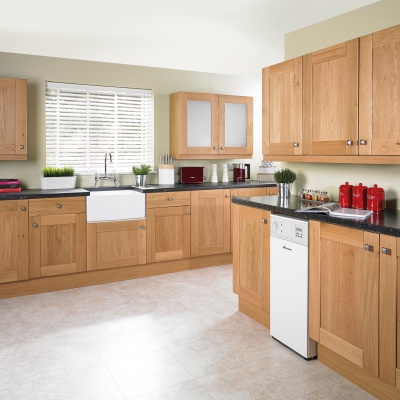

With a simple heating control, and the option for a plug-in programmer, it is perfect for installation in your kitchen.

Earn 20 points with these products on the Greenstar Reward Programme

Features & Benefits

Cross firing burner
One piece baffle for quick and easy servicing
Easy access oil and hydraulic connections
Optional Plug in programmer available
Lightweight aiding installation
Compatible with solar thermal
Accepts a 30°C return temperature making the appliance perfect for modern heating designs
5 year guarantee on Worcester primary heat exchanger
10 year guarantee on the plate heat exchanger
80/125mm room sealed flues with lengths of up to 8m available
Plume management of up to 5m with conventional and flexi-flue kits also available

Technical Details

Greenstar Danesmoor 12/18 Greenstar Danesmoor 18/25 Greenstar Danesmoor 25/32
Part number 7 731 600 053 7 731 600 054 7 731 600 055
ErP Efficiency Rating
A
A
A
ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet
Solar Compatible
Control Options
Dimensions (mm) height x width x depth 855 x 370 x 600 855 x 370 x 600 855 x 370 x 600
Clearances (mm) above, sides, below and front 300, 5,600 (fixed surface) & 10 (removable worktop) 300, 5,600 (fixed surface) & 10 (removable worktop) 300, 5,600 (fixed surface) & 10 (removable worktop)
Maximum horizontal flue (mm) 5000 5000 5000
Maximum vertical flue (mm) 8000 8000 8000
Ingress protection rating IP20 IP20 IP20
Central heating output (kW) 18 25 32
Minimum inlet pressure (bar) N/A N/A N/A
Lift weight (kg) 86 89 93

Related Accessories

Boiler Accessories Part number
CondenseSure 7 716 192 746
Flashing Kits Part number
Flat roof flashing kit (100mm & 125mm dia.) 7 716 191 090
Pitched roof flashing kit (100mm & 125mm dia) 7 716 191 091
Flue Part number
1000mm extension kit, 100mm dia 7 716 190 066
45º bend, 100mm dia 7 716 190 069
45º bend, 80/125mm 7 716 190 035 Installation Manual
500mm extension kit, 100mm dia 7 716 190 067
90º flue bend 7 716 190 034 Installation Manual
Flue extension, 80/125mm 7 716 190 033 Installation Manual
Greenstar Oilfit 100mm flexible flue kit, 12m 7 716 190 077
Greenstar Oilfit 100mm flexible flue kit, 8m 7 716 190 076
Flue Damper 7 716 190 101
Stainless steel flue terminal guard 7 716 190 050
Telescopic extension 100mm dia 7 716 190 068
80/125 standard telescopic flue kit 7 716 190 064 Installation Manual
80/125 short telescopic flue kit 7 716 190 062 Installation Manual
Wall cover plate kit 100mm dia. 7 716 190 074
Support bracket kit (125mm dia.) 7 716 191 174
600mm extension 7 716 190 097
Conventional vertical flue kit, 100/103mm 7 716 190 104
Vertical flue kit, 80/125mm 7 716 190 103
Infill Plate Kit (for high level horizontal flues) 7 716 191 105
Plume Part number
Plume management kit 7 716 190 092
Plume management 45º bend 7 716 190 094
Plume management 90º bend 7 716 190 095
1,000mm extension 7 716 190 093
