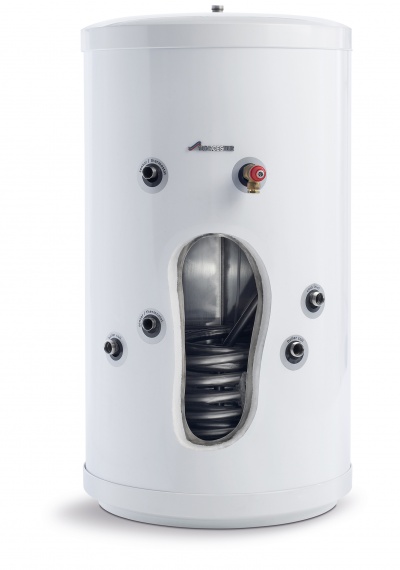

Greenstore unvented cylinders overview

Our Greenstore hot water cylinder range perfectly complements our Greenstar system or regular boilers.

Hot water is supplied at mains pressure for powerful showers and fast bath filling. Greenstore cylinders offer high performance, fast re-heat times and significant energy savings over traditional cylinders.

Our cylinders come in 7 sizes from 90 to 300 litres.

 Earn 10 points with these products on the Greenstar Reward Programme

Features & Benefits

Compatible with other manufacturers' products
Factory-installed G3 temperature and pressure relief valve
3kW immersion heater included
Complies and exceeds Building Regulations 2010 Part 1
25 year guarantee
ErP label arrow
65mm insulation

Technical Details

Greenstore SC-90 Greenstore SC-120 Greenstore SC-150 Greenstore SC-180 Greenstore SC-210 Greenstore SC-250 Greenstore SC-300
Part number 7 716 842 027 7 716 842 552 7 716 842 553 7 716 842 554 7 716 842 555 7 716 842 556 7 716 842 557
ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet
ErP Efficiency Rating
B
B
B
B
B
C
C
Hot water capacity (litres) 93 123 161 191 216 246 292
Height (mm) 835 1024 1274 1479 1654 1849 2144
Diameter (mm) 570 570 570 570 570 570 570
Dedicated solar volume (litres) 0 0 0 0 0 0 0
Weight-dry (kg) 26 34 39 44 48 52 59
Standing heat loss (Watts) 41.6 40 50 57 62 68 76
Re-heat times - 100% (15-60°C) (minutes) 15 19 23 27 18 21 24
Insulation Thickness (mm) 65 60 (Side), 28 (Bottom), 64 (Top) 60 (Side), 28 (Bottom), 64 (Top) 60 (Side), 28 (Bottom), 64 (Top) 60 (Side), 28 (Bottom), 64 (Top) 60 (Side), 28 (Bottom), 64 (Top) 60 (Side), 28 (Bottom), 64 (Top)
