Greenstore unvented solar cylinders overview

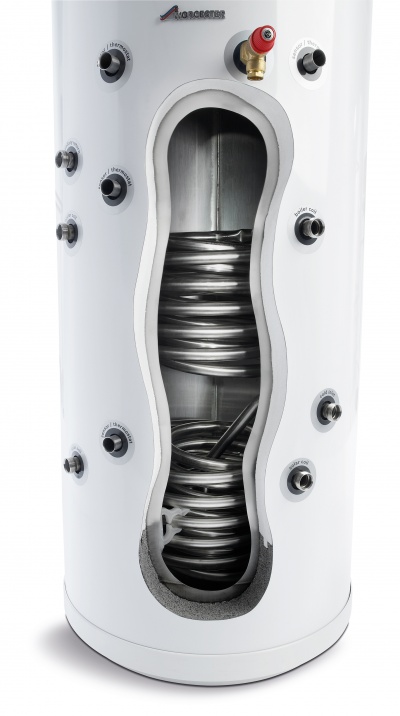

Our Greenstore hot water solar cylinders are specifically designed to work with our Greenskies solar water panels. With all the same benefits as our unvented range, they enable you to add solar water heating panels to your system at a later date without having to replace your cylinder.
Hot water is supplied at mains pressure for powerful showers and fast bath filling. Greenstore cylinders offer high performance, fast re-heat times and significant energy savings over traditional cylinders. Our solar compatible cylinders come in 5 sizes from 150 to 300 litres.
Earn 10 points with these products on the Greenstar Reward Programme
Features & Benefits
|
Can be combined with our Greenskies solar thermal range
|
Compatible with other manufacturers' products
|
Factory-installed G3 temperature and pressure relief valve
|
|
3kW immersion heater included
|
Complies and exceeds Building Regulations 2010 Part 1
|
25 year guarantee
|
|
ErP label arrow
|
Thick 65mm of insulation
|
Technical Details
| Greenstore TC-150 | Greenstore TC-180 | Greenstore TC-210 | Greenstore TC-250 | Greenstore TC-300 | |
|---|---|---|---|---|---|
| Part number | 7 716 842 040 | 7 716 842 559 | 7 716 842 560 | 7 716 842 561 | 7 716 842 562 |
| ErP Data Sheet | ErP Data Sheet | ErP Data Sheet | ErP Data Sheet | ErP Data Sheet | ErP Data Sheet |
| ErP Efficiency Rating |
C
|
B
|
B
|
C
|
C
|
| Hot water capacity (litres) | 158 | 187 | 211 | 241 | 287 |
| Height (mm) | 1285 | 1479 | 1654 | 1849 | 2144 |
| Diameter (mm) | 570 | 570 | 570 | 570 | 570 |
| Dedicated solar volume (litres) | 65 | 65 | 105 | 115 | 115 |
| Weight-dry (kg) | 41 | 49 | 53 | 57 | 64 |
| Standing heat loss (Watts) | 68.4 | 57 | 62 | 68 | 76 |
| Re-heat times - 100% (15-60°C) (minutes) | 14 | 17 | 12 | 13 | 24 |
| Insulation Thickness (mm) | 65 | 60 (Side), 28 (Bottom), 64 (Top) | 60 (Side), 28 (Bottom), 64 (Top) | 60 (Side), 28 (Bottom), 64 (Top) | 60 (Side), 28 (Bottom), 64 (Top) |
Manuals & Brochures
| Product Literature |
|---|
| Worcester Greenstore TC Cylinder Installation and Servicing Instructions |
