Greenstore LECP heat pumps Professional

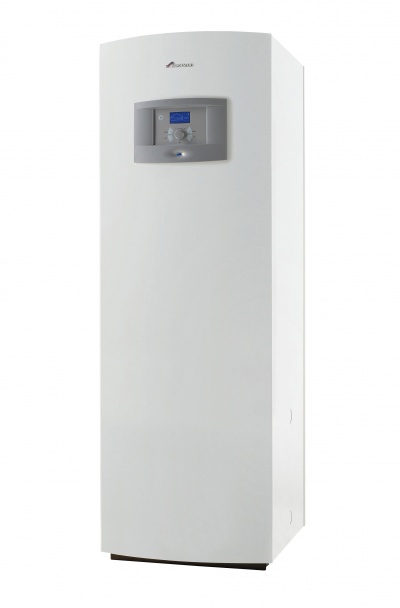

Greenstore LECP heat pumps overview

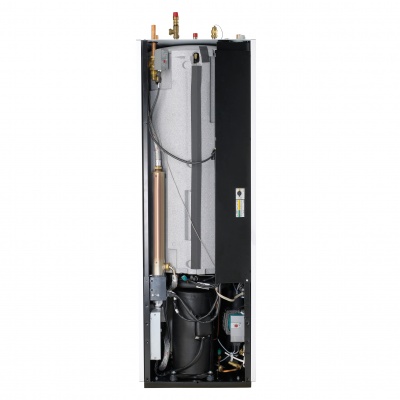

Our Greenstore ground source heat pumps provide economical, low carbon energy, enabling you to meet all of the heating and hot water requirements of your home from one renewable source. Available in two versions, the system version has been designed for use with a G3 approved Greenstore solar-ready cylinder for the production of hot water, whilst a G3 approved Combination model includes a built-in 185 litre cylinder.

Features & Benefits

Up to 400% efficient	Complete heating and hot water solution	Straightforward to install - no flue or boiler required
Excellent SCoP ratings	Can be cascaded for large properties	Illuminated text display menu
Weather compensation	Environmental impact - Contains fluorinated greenhouse gas	Refrigerant type - R407C
Global warming potential - 1.774kg CO2e	Type of refrigerant circuit - Sealed

Technical details

Greenstore 6 system

Part number: 8 738 203 184
ErP Efficiency Rating: A⁺
55°C
A⁺⁺
35°C
ErP Data Sheet: ErP Data Sheet
Solar Compatible
Control Options
Clearances (mm) above, sides, below and front): 300 above, 100 left and right, 800 back (System and Combi)
Dimensions (mm) height x width x depth ): 1,520 x 600 x 645
Weight (kg): 150
Permitted operating temperature (C): 10C – 35C
CoP (B0/W35): 3.96
CoP (B0/W45): 3.15
Heat Output (B0/W35)(kW): 5.4
Heat Output (B0/W45)(kW): 5.1
Nominal flow (delta_t = 3K²)(l/s): 0.2
Nominal flow (delta_T = 7K): 0.2
Permitted external pressure drop (kPa): 47
Operating temperature (C): -5C - +20
Max Pressure (bar): 31
Minimum flow temperature (C): 20
Maximum flow temperature (C): 65C
Minimum permitted operating pressure (bar): 0.5
Maximum permitted operating pressure (bar): 3
Primary water content (litres): 7
Connection (Cu)(mm): 22
Amount of Refrigerant (kg): 1,600
Amount of Refrigerant (toCO2-eq): 2,838

Greenstore 7 system

Part number: 8 738 203 185
ErP Efficiency Rating: A⁺
55°C
A⁺
35°C
ErP Data Sheet: ErP Data Sheet
Solar Compatible
Control Options
Clearances (mm) above, sides, below and front): 300 above, 100 left and right, 800 back (System and Combi)
Dimensions (mm) height x width x depth ): 1,520 x 600 x 645
Weight (kg): 155
Permitted operating temperature (C): 10C – 35C
CoP (B0/W35): 3.82
CoP (B0/W45): 2.97
Heat Output (B0/W35)(kW): 6.6
Heat Output (B0/W45)(kW): 6.2
Nominal flow (delta_t = 3K²)(l/s): 0.41
Nominal flow (delta_T = 7K): 0.2
Permitted external pressure drop (kPa): 43
Operating temperature (C): -5C - +20
Max Pressure (bar): 31
Minimum flow temperature (C): 20
Maximum flow temperature (C): 20C
Minimum permitted operating pressure (bar): 0.5
Maximum permitted operating pressure (bar): 0.5
Primary water content (litres): 7
Connection (Cu)(mm): 22
Amount of Refrigerant (kg): 1,600
Amount of Refrigerant (toCO2-eq): 2,838

Greenstore 9 system

Part number: 8 738 203 186
ErP Efficiency Rating: A⁺
55°C
A⁺⁺
35°C
ErP Data Sheet: ErP Data Sheet
Solar Compatible
Control Options
Clearances (mm) above, sides, below and front): 300 above, 100 left and right, 800 back (System and Combi)
Dimensions (mm) height x width x depth ): 1,520 x 600 x 645
Weight (kg): 165
Permitted operating temperature (C): 10C – 35C
CoP (B0/W35): 3.84
CoP (B0/W45): 3.15
Heat Output (B0/W35)(kW): 8.7
Heat Output (B0/W45)(kW): 8.3
Nominal flow (delta_t = 3K²)(l/s): 0.5
Nominal flow (delta_T = 7K): 0.31
Permitted external pressure drop (kPa): 80
Operating temperature (C): -5C - +20
Max Pressure (bar): 31
Minimum flow temperature (C): 20
Maximum flow temperature (C): 20C
Minimum permitted operating pressure (bar): 0.5
Maximum permitted operating pressure (bar): 0.5
Primary water content (litres): 7
Connection (Cu)(mm): 22
Amount of Refrigerant (kg): 1,800
Amount of Refrigerant (toCO2-eq): 3,193

Greenstore 11 system

Part number: 8 738 203 187
ErP Efficiency Rating: A⁺⁺
55°C
A⁺⁺
35°C
ErP Data Sheet
Solar Compatible
Control Options
Clearances (mm) above, sides, below and front): 300 above, 100 left and right, 800 back (System and Combi)
Dimensions (mm) height x width x depth ): 1,520 x 600 x 645
Weight (kg): 175
Permitted operating temperature (C): 10C – 35C
CoP (B0/W35): 3.97
CoP (B0/W45): 3.17
Heat Output (B0/W35)(kW): 10.2
Heat Output (B0/W45)(kW): 9.6
Nominal flow (delta_t = 3K²)(l/s): 0.62
Nominal flow (delta_T = 7K): 0.38
Permitted external pressure drop (kPa): 91
Operating temperature (C): -5C - +20
Max Pressure (bar): 31
Minimum flow temperature (C): 20
Maximum flow temperature (C): 20C
Minimum permitted operating pressure (bar): 0.5
Maximum permitted operating pressure (bar): 0.5
Primary water content (litres): 7
Connection (Cu)(mm): 22
Amount of Refrigerant (kg): 2,400
Amount of Refrigerant (toCO2-eq): 4,258

Greenstore 6 combi

Part number: 7 716 180 025
ErP Efficiency Rating: B

A⁺
ErP Data Sheet: ErP Data Sheet
Solar Compatible
Control Options
Clearances (mm) above, sides, below and front): 300 above, 100 left and right, 800 back (System and Combi)
Dimensions (mm) height x width x depth ): 1,800 x 600 x 645
Weight (kg): 200
Permitted operating temperature (C): 10C – 35C
CoP (B0/W35): 3.96
CoP (B0/W45): 3.15
Heat Output (B0/W35)(kW): 5.4
Heat Output (B0/W45)(kW): 5.1
Nominal flow (delta_t = 3K²)(l/s): 0.2
Nominal flow (delta_T = 7K): 0.2
Permitted external pressure drop (kPa): 47
Operating temperature (C): -5C - +20
Max Pressure (bar): 31
Minimum flow temperature (C): 20
Maximum flow temperature (C): 20C
Minimum permitted operating pressure (bar): 0.5
Maximum permitted operating pressure (bar): 0.5
Primary water content (litres): 7
Connection (Cu)(mm): 22
Amount of Refrigerant (kg): 1,600
Amount of Refrigerant (toCO2-eq): 2,838

Greenstore 7 combi

Part number: 7 716 180 026
ErP Efficiency Rating: B

A⁺
ErP Data Sheet: ErP Data Sheet
Solar Compatible
Control Options
Clearances (mm) above, sides, below and front): 300 above, 100 left and right, 800 back (System and Combi)
Dimensions (mm) height x width x depth ): 1,800 x 600 x 645
Weight (kg): 202
Permitted operating temperature (C): 10C – 35C
CoP (B0/W35): 3.82
CoP (B0/W45): 2.97
Heat Output (B0/W35)(kW): 6.6
Heat Output (B0/W45)(kW): 6.2
Nominal flow (delta_t = 3K²)(l/s): 0.41
Nominal flow (delta_T = 7K): 0.25
Permitted external pressure drop (kPa): 43
Operating temperature (C): -5C - +20
Max Pressure (bar): 31
Minimum flow temperature (C): 20
Maximum flow temperature (C): 20C
Minimum permitted operating pressure (bar): 0.5
Maximum permitted operating pressure (bar): 0.5
Primary water content (litres): 7
Connection (Cu)(mm): 22
Amount of Refrigerant (kg): 1,600
Amount of Refrigerant (toCO2-eq): 2,838

Greenstore 9 combi

Part number: 7 716 180 027
ErP Efficiency Rating: B

A⁺
ErP Data Sheet: ErP Data Sheet
Solar Compatible
Control Options
Clearances (mm) above, sides, below and front): 300 above, 100 left and right, 800 back (System and Combi)
Dimensions (mm) height x width x depth ): 1,800 x 600 x 645
Weight (kg): 210
Permitted operating temperature (C): 10C – 35C
CoP (B0/W35): 3.84
CoP (B0/W45): 3.15
Heat Output (B0/W35)(kW): 8.7
Heat Output (B0/W45)(kW): 8.3
Nominal flow (delta_t = 3K²)(l/s): 0.5
Nominal flow (delta_T = 7K): 0.31
Permitted external pressure drop (kPa): 80
Operating temperature (C): -5C - +20
Max Pressure (bar): 31
Minimum flow temperature (C): 20
Maximum flow temperature (C): 20C
Minimum permitted operating pressure (bar): 0.5
Maximum permitted operating pressure (bar): 0.5
Primary water content (litres): 7
Connection (Cu)(mm): 22
Amount of Refrigerant (kg): 1,800
Amount of Refrigerant (toCO2-eq): 3,193

Greenstore 11 combi

Part number: 7 716 180 028
ErP Efficiency Rating: B

A⁺⁺
ErP Data Sheet: ErP Data Sheet
Solar Compatible
Control Options
Clearances (mm) above, sides, below and front): 300 above, 100 left and right, 800 back (System and Combi)
Dimensions (mm) height x width x depth ): 1,800 x 600 x 645
Weight (kg): 218
Permitted operating temperature (C): 10C – 35C
CoP (B0/W35): 3.97
CoP (B0/W45): 3.17
Heat Output (B0/W35)(kW): 10.2
Heat Output (B0/W45)(kW): 9.6
Nominal flow (delta_t = 3K²)(l/s): 0.62
Nominal flow (delta_T = 7K): 0.38
Permitted external pressure drop (kPa): 91
Operating temperature (C): -5C - +20
Max Pressure (bar): 31
Minimum flow temperature (C): 20
Maximum flow temperature (C): 20C
Minimum permitted operating pressure (bar): 0.5
Maximum permitted operating pressure (bar): 0.5
Primary water content (litres): 7
Connection (Cu)(mm): 22
Amount of Refrigerant (kg): 2,400
Amount of Refrigerant (toCO2-eq): 4,258
