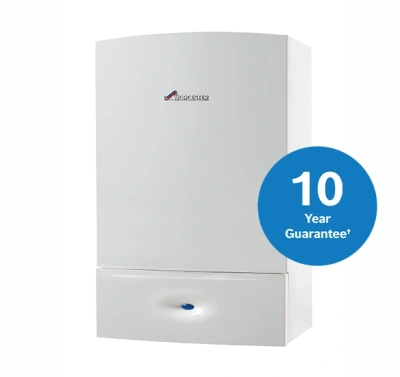

Greenstar CDi Compact overview

Our Greenstar CDi Compact combi boiler is suitable for small, medium and large-sized properties with one or two bathrooms.

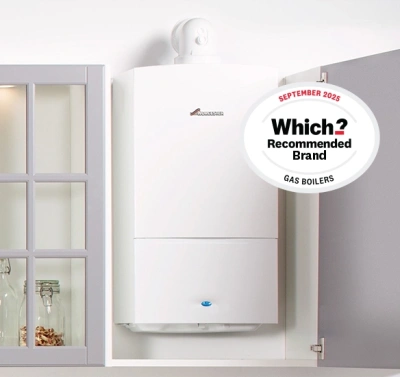

This boiler is designed to fit within a standard kitchen cupboard. Despite its compact size, the high outputs make it suitable for homes with more than one bathroom.

Features & Benefits

Wall mounting jig providing pre-plumbing and rear piping as standard
Low lift weight
Fits in a standard kitchen cupboard
Central heating flow and hot water temperatures can be adjusted using simple control knobs
Plug & play optional Worcester controls available
Commissioning information for easier completion of the Benchmark checklist
Clear operational information and diagnostic display

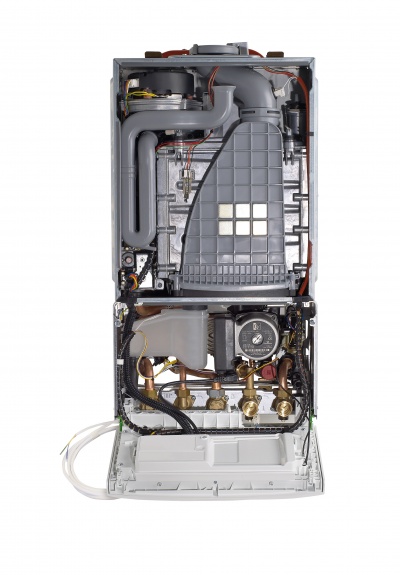

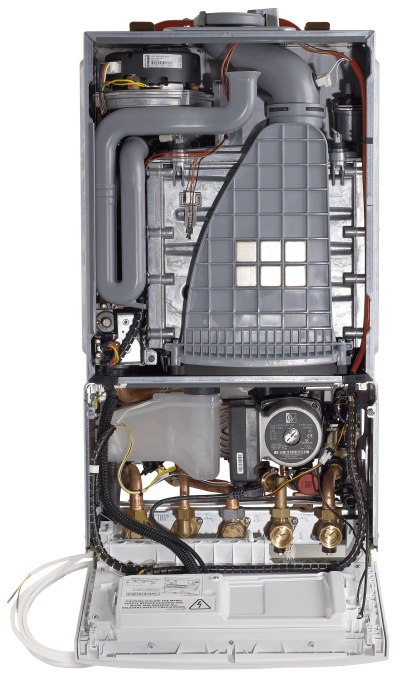

High efficiency and greater reliability with our innovative WB7 heat exchanger
Colour-coded wiring connectors for error free connection and removal
Compatible with CondenseSure accessory - eliminates risk of condensate pipe freezing*
Achieves an A+ ErP package efficiency rating for heating when installed with a Wave smart internet connected control
Scan and register the boiler using our FREE online registration app

Technical Details

Greenstar 28CDi Compact Greenstar 32CDi Compact Greenstar 36CDi Compact
Part number 7 733 600 054 7 733 600 055 7 733 600 056
ErP Efficiency Rating
A
A
A
A
A
A
ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet
Solar Compatible
Wave Compatible
EasyControl Compatible **
Control Options
Dimensions (mm) height x width x depth 690 x 390 x 280 690 x 390 x 280 690 x 390 x 280
Clearances (mm) above, sides, below and front 30, 5, 200, 600 (fixed surface) & 20 (cupboard door) 30, 5, 200, 600 (fixed surface) & 20 (cupboard door) 30, 5, 200, 600 (fixed surface) & 20 (cupboard door)
Maximum horizontal flue (mm) 6000 6000 6000
Maximum vertical flue (mm) 6000 6000 6000
Ingress protection rating X4D X4D X4D
Wall mounting jig supplied
Central heating output (kW) 24 24 24
Max DHW output (kW) 28 32 36
Hot water flow rate 40°c ∆T (litres per minute) 10l/min 11.5l/min 12.9l/min
Minimum inlet pressure (bar) 1.6 1.6 1.6
NOx emissions (mg/kWh) 35 35 35
Lift weight (kg) 32.9 32.9 32.9

*The Condensesure Siphon has been proven to be effective at preventing frozen condensate at -15°C for a sustained period of 48 hours. 32mm pipework must be used and should not exceed 3 metres in length

**The EasyControl adaptor is required for the Bosch EasyControl to work with our Greenstar oil boilers and our range of regular boilers

Related Accessories

Boiler Accessories Part number
CondenseSure 7 716 192 746
Keyless Filling Link 7 716 192 610
Flue Gas Heat Recovery Unit 7 733 600 047 Installation Manual
Vertical Pre-piping Assembly Kits 7 716 192 713
Earth bonding strip 7 716 192 686
Below boiler pipe cover 7 716 192 608
Domestic hot water combi pre-heat accessory (now available) 7 716 192 735
Greenstar Comfort wall mounting plate 7 733 600 039
EasyControl Adapter 7 736 701 560
Flashing Kits Part number
Flat roof flashing kit (100mm & 125mm dia.) 7 716 191 090
Pitched roof flashing kit (100mm & 125mm dia) 7 716 191 091
Flue Part number
Standard telescopic horizontal flue kit (100mm dia) 7 716 191 0822
1000mm extension kit (100mm dia.) 7 716 191 083
90º bend (100mm dia.) 7 716 191 084
Short flue extension, 220mm (100mm dia) 7 716 191 133
2m flue extension (100mm dia.) 7 716 191 172
High level horizontal flue adaptor (100mm dia) 7 719 002 432
High level horizontal flue adaptor (125mm dia) 7 719 002 433
Vertical BF kit (100mm) 7 719 002 4302
Vertical BF kit (125mm) 7 719 002 4312
60/100mm (x2) 45º bends 7 716 191 085
Horizontal flue kit (125mm dia.) 7 719 003 7022
1000mm extension (125mm dia.) 7 719 003 666
45 degree bend (100mm dia.) 7 719 003 665
90º bend (125mm dia.) 7 719 003 664
Long telescopic flue kit (100mm dia.) 7 716 191 171
Support bracket kit (100mm dia.) 7 716 191 177
Support bracket (125mm dia.) 7 716 191 179
Support bracket 6 pack (100mm dia.) 7 716 191 178
High level horizontal telescopic 60/100mm flue kit 7 733 600 0482
Plume Part number
45º bend (x2) 7 716 191 089
90º bend 7 716 191 088
Plume management terminal guard round (60mm dia.) 7 716 191 176
Plume management kit (60mm dia) 7 716 191 086
