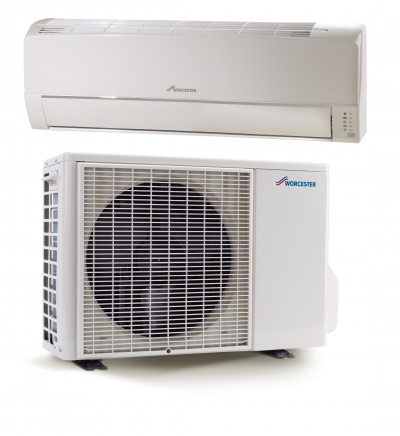

Greensource air to air heat pump overview

Our Greensource air to air heat pump heats your home by extracting the renewable energy that's in the air outside; it then converts this heat into warm air for distribution around your property. As an added benefit it can also act as an air cooler during the warmer summer months, improving comfort.

Features & Benefits

Up to 500% efficient (producing up to 5kW of heat energy for every 1kW of electricity used)
Inbuilt air purification is perfect for allergy sufferers
Can provide hot air comfort even when outside temperatures are as low as -20
Compact design, requiring only an outside wall
Straightforward to install and easy to maintain
Can heat an area up to 100m²
Environmental impact - Contains fluorinated greenhouse gas
Refrigerant type - R410A
Global warming potential - 2.088kgCO2e
Type of refrigerant circuit - Not sealed

Technical Details

Greensource air to air heat pump
Part number 7 716 150 179
ErP Efficiency Rating
A
A
ErP Data Sheet
Solar Compatible
Internet Connected
Control Options
Clearances (mm) above, sides, below and front (Indoor Unit) 50 above, left and right 70 below
Clearances (mm) above, sides, below and front (Outdoor Unit) 100 above and below, 200 front and right, 50 back
Dimensions (mm) height x width x depth (Indoor Unit) 860 x 292 x 205
Dimensions (mm) height x width x depth (Outdoor Unit) 780 x 540 x 265
Min./Max. (kW) Emitted heat output 0.9/6.0
Min./Max. (kW) Emitted cooling effect 0.9/4.0
Airflow (m³) 6.9-10.6
Sound level cooling (dB(A))
System Refrigerant R410A
Single phase voltage (V) 220-240
Maximum operating current (A) 8.7
Amount of Refrigerant (kg) 0,990
Amount of Refrigerant (toCO2-eq) 2,067
