Greenstar Danesmoor External overview

Our Greenstar Danesmoor External boasts the same features as the internal model.

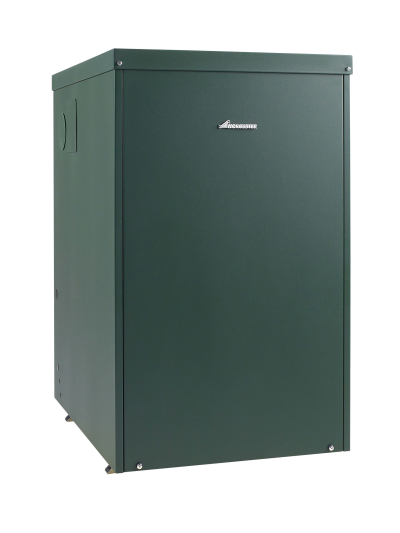

This boiler is suitable for small, medium and large sized homes and is installed outside which frees up space within your home. The boiler is contained in a robust cabinet that protects the boiler in all weathers.

 Earn 20 points with these products on the Greenstar Reward Programme

Features & Benefits

Cross firing burner
One piece baffle for quick and easy servicing
Easy access oil and hydraulic connections
Accepts a 30°C return temperature making the appliance perfect for modern heating designs
Lightweight aiding installation
Compatible with solar thermal
5 year guarantee on Worcester primary heat exchanger
10 year guarantee on the plate heat exchanger
80/125mm room sealed flues with lengths of up to 8m available
Plume management of up to 5m with conventional and flexi-flue kits also available

Technical Details

Greenstar Danesmoor External 12/18 Greenstar Danesmoor External 18/25 Greenstar Danesmoor External 25/32
Part number 7 731 600 059 7 731 600 060 7 731 600 061
ErP Efficiency Rating
A
A
A
ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet
Solar Compatible
EasyControl Compatible **
Control Options
Dimensions (mm) height x width x depth 950 x 565 x 780 950 x 565 x 780 950 x 565 x 780
Clearances (mm) above, sides, below and front 600, 600, 45, 85, 2500 (Clearances if rear flued) See Tech and Spec for other arrangements 600, 600, 45, 85, 2500 (Clearances if rear flued) See Tech and Spec for other arrangements 600, 600, 45, 85, 2500 (Clearances if rear flued) See Tech and Spec for other arrangements
Maximum horizontal flue (mm) N/A N/A N/A
Maximum vertical flue (mm) N/A N/A N/A
Ingress protection rating IP45 IP45 IP45
Central heating output (kW) 18 25 32
Minimum inlet pressure (bar) N/A N/A N/A
Lift weight (kg) 99 102 106

**The EasyControl adaptor is required for the Bosch EasyControl to work with our Greenstar oil boilers and our range of regular boilers

Related Accessories

Boiler Accessories Part number
CondenseSure 7 716 192 746
EasyControl Adapter 7 736 701 560
Flue Part number
90º flue bend 7 716 190 034 Installation Manual
Stainless steel flue terminal guard 7 716 190 050
Plume Part number
Plume management kit 7 716 190 092
Plume management 45º bend 7 716 190 094
Plume management 90º bend 7 716 190 095
1,000mm extension 7 716 190 093
