Greenstar Ri (27kW and 30kW) overview

Our higher output Greenstar Ri boiler is a compact, wall mounted boiler that is perfect for medium and large-sized homes.

Small enough to be installed in a standard kitchen cupboard, this boiler can be used with our range of high efficiency Greenstore cylinders for a complete Worcester system solution for your home.

Features & Benefits

Wall mounting plate providing rear piping as standard
Low lift weight
Fits in a standard kitchen cupboard
Simple boiler control knob
Plug & play optional Worcester controls available*
Compatible with S and Y plan

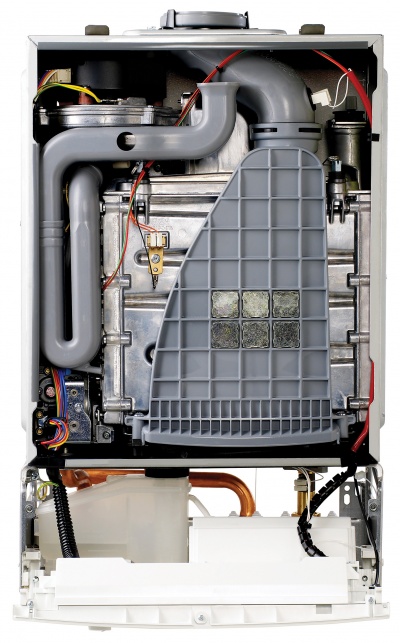

High efficiency and greater reliability with our innovative WB7 heat exchanger
Compatible with CondenseSure accessory - risk of condensate pipe freezing eliminated†
Full range of Condensfit II™ horizontal and vertical flue options with optional plume management kit available
Scan and register the boiler using our FREE online registration app

Technical Details

Greenstar 27Ri Greenstar 30Ri
Part number 7 733 600 064 7 733 600 066
ErP Efficiency Rating
A
A
ErP Data Sheet ErP Data Sheet ErP Data Sheet
Solar Compatible
Wave Compatible
EasyControl Compatible **
Control Options *
Dimensions (mm) height x width x depth 600 x 390 x 270 600 x 390 x 270
Clearances (mm) above, sides, below and front 30, 5, 200, 600 (fixed surface) & 20 (cupboard door) 30, 5, 200, 600 (fixed surface) & 20 (cupboard door)
Maximum horizontal flue (mm) 6000 6000
Maximum vertical flue (mm) 6000 6000
Ingress protection rating X4D X4D
Wall mounting jig supplied
Central heating output (kW) 27 30
Minimum inlet pressure (bar) N/A N/A
NOx emissions (mg/kWh) 31 31
Lift weight (kg) 22.6 22.6

*When an optional Worcester Greenstar Wiring Centre is used

†The Condensesure Siphon has been proven to be effective at preventing frozen condensate at -15°C for a sustained period of 48 hours.

**The EasyControl adaptor is required for the Bosch EasyControl to work with our Greenstar oil boilers and our range of regular boilers

Related Accessories

Boiler Accessories Part number
CondenseSure 7 716 192 746
Flue Gas Heat Recovery Unit 7 733 600 047 Installation Manual
Below boiler pipe cover 7 716 192 608
Greenstar Comfort wall mounting plate 7 733 600 039
EasyControl Adapter 7 736 701 560
Flashing Kits Part number
Flat roof flashing kit (100mm & 125mm dia.) 7 716 191 090
Pitched roof flashing kit (100mm & 125mm dia) 7 716 191 091
Flue Part number
Standard telescopic horizontal flue kit (100mm dia) 7 716 191 0822
1000mm extension kit (100mm dia.) 7 716 191 083
90º bend (100mm dia.) 7 716 191 084
Short flue extension, 220mm (100mm dia) 7 716 191 133
2m flue extension (100mm dia.) 7 716 191 172
High level horizontal flue adaptor (100mm dia) 7 719 002 432
High level horizontal flue adaptor (125mm dia) 7 719 002 433
Vertical BF kit (100mm) 7 719 002 4302
Vertical BF kit (125mm) 7 719 002 4312
60/100mm (x2) 45º bends 7 716 191 085
Horizontal flue kit (125mm dia.) 7 719 003 7022
1000mm extension (125mm dia.) 7 719 003 666
45 degree bend (100mm dia.) 7 719 003 665
90º bend (125mm dia.) 7 719 003 664
Long telescopic flue kit (100mm dia.) 7 716 191 171
Support bracket kit (100mm dia.) 7 716 191 177
Support bracket (125mm dia.) 7 716 191 179
Support bracket 6 pack (100mm dia.) 7 716 191 178
High level horizontal telescopic 60/100mm flue kit 7 733 600 0482
Plume Part number
45º bend (x2) 7 716 191 089
90º bend 7 716 191 088
Plume management terminal guard round (60mm dia.) 7 716 191 176
Plume management kit (60mm dia) 7 716 191 086
