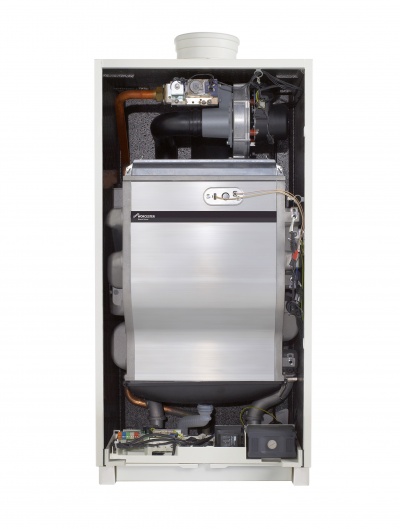

GB162 overview

Our GB162 boiler is perfect for both large domestic and commercial applications and can be installed on its own or as part of a multi-boiler 'cascade' system.

Features & Benefits

Can automatically modulate its output down to 30% or less in order to precisely match the demand for heat
Cascade outputs up to 800kW with tailor made frame kits to suit
Any combination of 1 to 8 boilers can be connected either in-line (TL) or back-to-back (TR)
Extremely compact space-saving cascades (400kW in just 1m²)
Cascaded boilers can be sequenced to come into and out of operation when required.
Ultra low NOx emission levels
GB162 80kW and 100kW models are registered on the Carbon Trust’s ECA scheme (Enhanced Capital Allowance)
Compatible with intelligent, modular Energy Management System controls and BMS interfaces
Intuitive user controls
Cascade kit includes: Mounting frames, support legs, main gas pipe, flow and return headers (reversible for either left or right orientation), low loss header, boiler connecting pipe work, full insulation

Technical Details

GB162 50kW GB162 65kW GB162 80kW GB162 100kW
Part number 7 736 700 642 7 746 900 822 8 747 024 8 8 747 025 0
ErP Efficiency Rating
A
A
N/A
N/A
ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet ErP Data Sheet
Seasonal Efficiency to Part L2B 95.9% 95.5% 95.7% 96.1%
Rated heat output at 80/60°C (kW) 46.6 60.5 80 94.5
Rated heat output at 50/30°C (kW) 49.9 65 84.5 99.5
Rated maximum net heat input (kW) 47.5 62 82 96.5
Dimensions (mm) height x width x depth 1414* x 520 x 465 1414* x 520 x 465 1414* x 520 x 465 1414* x 520 x 465
Low energy modulating pump group available
Solar Compatible
Weather and load compensated control **
Load managing cascade sequencing control **
Secondary heating circuit sensor, Pump & valve **
Simple building management interface **
Plate heat exchanger accessory available
NOx rating at 0% oxygen, dry (mg/kWh) 15 36 42 49
Maximum Operating Pressure (bar) 4 4 4 4
Lift weight (kg) 70 70 70 70
80/125mm maximum flue length (mm) 7,700 7,700 N/A N/A
100/150mm maximum flue length (mm) 20,000 20,000 18,000 18,000

*Height with pump group

**Available via control accessories to be selected depending on heating system design

Related Accessories

Part number
Connection set when using pump group without cascade frame
Low loss header for single boiler installations (c/w insulation)
Adapter for GB162 50kW and 65kW only (100/150mm dia.)
GB Plate Heat Exchanger 50kW
GB Plate Heat Exchanger 65kW
GB Plate Heat Exchanger 80/100kW
Threaded Flange Set 2 1/2"
Threaded Flange Set 3"
Threaded Flange Set 4"
Modulating Pump Group - Low Energy
WM10 Low Loss Header Module
MM10 Mixed Heating Circuit Module
EM10 BMS Interface for Single Boilers
MCM10 Cascade Sequencing Control (up to 4 boilers)
4122 Control Unit without MEC2
4122 Control Unit with MEC2
FM441 Heating and DHW Control Module
FM442 Heating Circuit Control Module
FM443 Solar Module
FM456 2 Boiler Cascade Sequence Module
FM457 4 Boiler Cascade Sequence Module
BFU Remote Control Room Thermostat
4323 Modular Digital Control Unit
Flashing Kits Part number
Flat roof flashing kit (100mm & 125mm dia.)
Pitched roof flashing kit (100mm & 125mm dia)
Flue Part number
Vertical flue kit (80/125mm dia.)
Horizontal flue kit (80/125mm dia.)
0.5 flue extension - cutable (80/125mm dia.)
1m flue extension - cutable (80/125mm dia.)
90° bend (80/125mm dia.)
45° bends - pair (80/125mm dia.)
Flue support bracket - single (80/125mm dia.)
Vertical flue kit (100/150mm dia.)
Horizontal flue kit (100/150mm dia.)
0.5 flue extension - cutable (100/150mm dia.)
1m flue extension - cutable (100/150mm dia.)
1m flue extension - non-cutable (100/150mm dia.)
90° bend (100/150mm dia.)
45° bends - pair (100/150mm dia.)
Flue support bracket - 3 pack (100/125mm dia.)
Clamp with EPDM seal (100/150mm dia.)
Flat roof flashing (100/150mm dia.)
Pitched roof flashing (100/150mm dia.)
