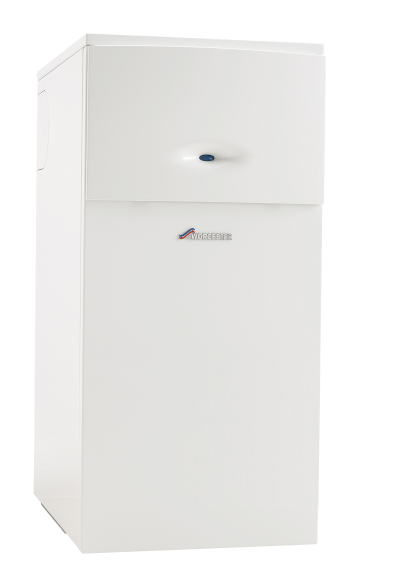

Greenstar CDi FS Regular overview

Our Greenstar FS CDi Regular is a perfect replacement for an older floor standing boiler in a larger property.

This boiler can be used with our range of high efficiency Greenstore cylinders allowing stored hot water to be rapidly replenished.

Features & Benefits

Floor mounting jig providing pre-plumbing and rear piping as standard

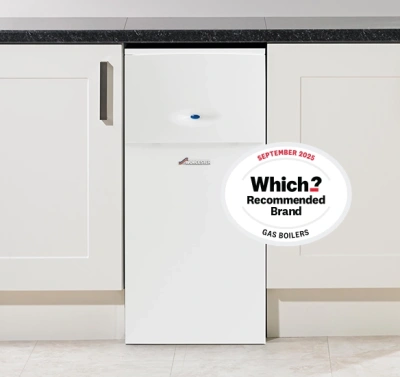

Fits underneath a standard kitchen worktop
Roll-in boiler minimises the risk of damaging floors

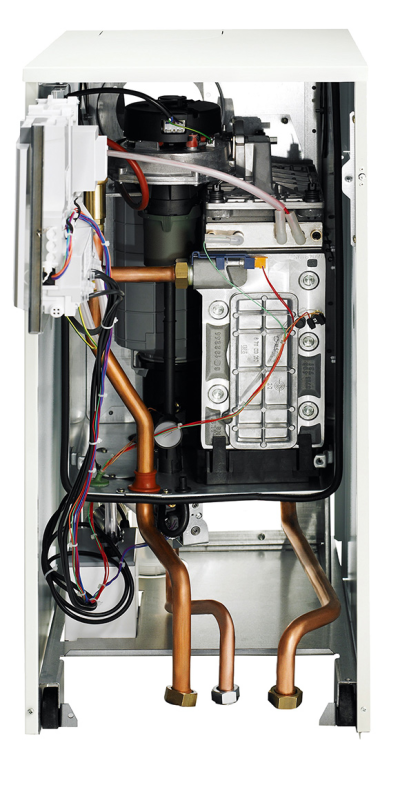

Interior space optimised for serviceability
Simple boiler control knob with digital display and one button commissioning mode
Engineer menus to optimise commissioning and support servicing
Classic on-board diagnostic display
Built-in condensate pump
Optional flexible flue system that can be routed through a brick chimney
Scan and register the boiler using our FREE online registration app

Technical Details

Greenstar FS 30CDi Regular Greenstar FS 42CDi Regular
Part number 7 731 600 102 7 731 600 104
ErP Efficiency Rating
A
A
ErP Data Sheet ErP Data Sheet ErP Data Sheet
Solar Compatible
Wave Compatible
EasyControl Compatible **
Control Options
Dimensions (mm) height x width x depth 850 x 400 x600 850 x 400 x600
Clearances (mm) above, sides, below and front 15, 5, 600 (fixed surface) & 25 (compartment door) 15, 5, 600 (fixed surface) & 25 (compartment door)
Maximum horizontal flue (mm) 4000 4000
Maximum vertical flue (mm) 6400 6400
Ingress protection rating X4D X4D
Wall mounting jig supplied
Central heating output (kW) 30 41
Minimum inlet pressure (bar) N/A N/A
NOx emissions (mg/kWh) 33.3 32.2
Lift weight (kg) 55.1 55.1

**The EasyControl adaptor is required for the Bosch EasyControl to work with our Greenstar oil boilers and our range of regular boilers

Related Accessories

Boiler Accessories Part number
EasyControl Adapter 7 736 701 560
Flashing Kits Part number
Flat roof flashing kit (100mm & 125mm dia.) 7 716 191 090
Pitched roof flashing kit (100mm & 125mm dia) 7 716 191 091
Flue Part number
1000mm extension kit (100mm dia.) 7 716 191 083
90º bend (100mm dia.) 7 716 191 084
Support bracket kit (100mm dia) 7 716 191 092
Short flue extension, 220mm (100mm dia) 7 716 191 133
60/100mm (x2) 45º bends 7 716 191 085
Horizontal flue kit (125mm dia.) 7 716 191 1572
Vertical BF kit (100mm dia.) 7 716 191 1562
Vertical BF kit (125mm dia.) 7 716 191 1582
RS telescopic flue kit (100mm dia.) 7 716 191 1552
80mm Flexible flue kit 7 716 191 1592
Flue Connector Vertical 60-100 7 716 191 164
Flue Connector Vertical 80-125 7 716 191 165
1000mm extension (125mm dia.) 7 719 003 666
45 degree bend (100mm dia.) 7 719 003 665
90º bend (125mm dia.) 7 719 003 664
Plume Part number
45º bend (x2) 7 716 191 089
90º bend 7 716 191 088
Plume management kit (60mm dia) 7 716 191 086
